- ผู้นำระดับสูงของ ROTARY DRILLING RIG!
|
รายละเอียดสินค้า:
การชำระเงิน:
|
| (A) ความสูงในการทำงานสูงสุด: | 7.8ม | (B) ความสูงของแพลตฟอร์มสูงสุด: | 5.8ม |
|---|---|---|---|
| (C) ความสูงของแพลตฟอร์ม - เก็บไว้: | 1 ม |

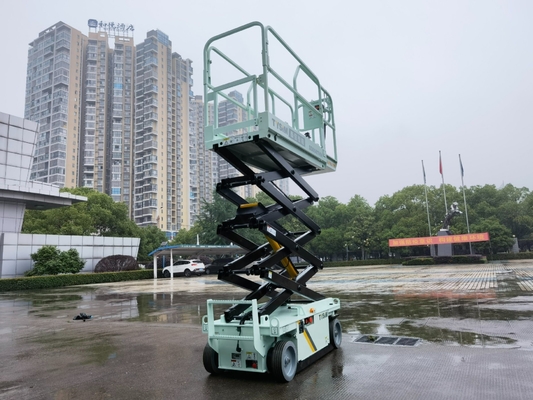

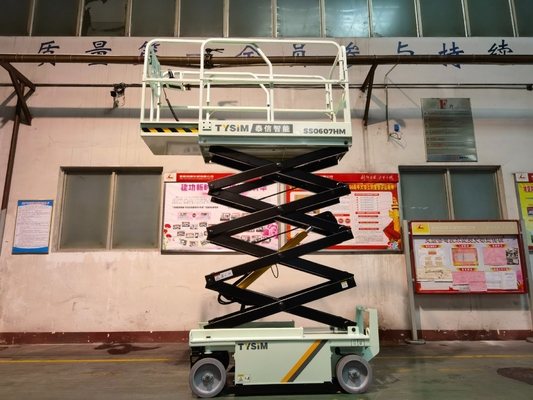

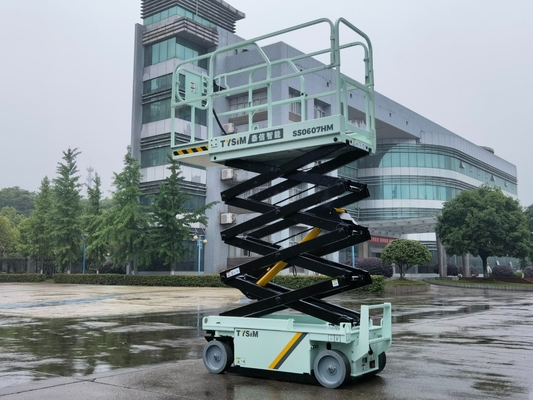

| Model | TS6 |
| Size | Dimension |
| (A)Max Working Height | 7.8m |
| (B)Max Platform Height | 5.8m |
| (C)Platform Height-Stowed | 1m |
| Platform-Length | 1.58m |
| -Length extended | 2.48m |
| Platform Extended | 0.9m |
| (D)Platform Width-outside | 0.74m |
| Rail Height | 1.1m |
| Toe-guard Height | 0.13m |
| (E)Height-Stowed:(rail unfolded) | 2.1m |
| (rail folded) | 1.75m |
| (F)Length-Stowed | 1.78m |
| Length-extended | 2.66m |
| (G)Width | 0.81m |
| (H)Wheelbase | 1.3m |
| (I)Ground Clearance (Pothole protection lay down) |
2cm |
| (J)Ground Clearance | 7cm |
| Performance | |
| Platform Occupancy (indoor/outdoor) | 2/0 |
| Wind Speed | 0m/s |
| Platform Capacity | 230kg |
| Extension Platform Capacity | 120kg |
| Drive Speed-Stowed | 3.5km/h |
| Drive Speed-Raised | 0.8km/h |
| Gradeability-Stowed | 25% |
| Turning Radius-inside | 0 |
| Turning Radius-outside | 1.6m |
| Raise/Lower Speed | 21s/32s |
| Control | Proportional |
| Drive Mode | Double front wheel |
| Non-marking tire(Dia. x W) | 323×100 |
| Power | |
| Power Source | 24VDC |
| 4x6V battery | |
| Hydraulic System Capacity | 8L |
| Noise Vibration | |
| Sound pressure level(ground) | <70dB |
| Sound pressure level(platform) | <70dB |
| Vibration | <2.5m/s² |
| Weight | 1200kg |
| CE Standard | EN280 |
Why Choose Us?
1. We are the first factory to design & manufacture pile breaker in China with over 5 years.
2. We have the Patent for Invention of Hydrauilc Pile Breaker in China.
3. Our pile breakers have been sold to more than 20 countries, with good feedback.
4. Using best material, our pile breaker is the best quality.
FAQ
Q1: Are you a trading company or a manufacturer?
A1: We are a professional manufacturer, and our factory mainly produces hydraulic pilling rig, hydraulic pile breaker, telescopic arm and related piling equipment etc. Our products have been exported to more than 50 countries of Asia, South America, Africa,and have developed a good world wide reputation.
Q2:What kind of product certification do you have?
A2: All our products have passed ISO9001 and CE certifications and also passed the inspection by the Chinese National Construction Machinery Quality Inspection Center. We have strict quality inspection process including a load test for every machine before leaving our factory in order to offer the best quality machines to our customers
Q3: Do you have after sales service?
A3:Yes, we have special service team which will offer you professional guidance. If need be, we can dispatch our engineer to your worksite to provide training for your staff.
Q4:Do you test all your goods before delivery?
A4 :Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.
