|Color:||yellow or other||Weight:||within 10t|
|Elements:||3, 4, 5, 6||Max Drilling Depth:||18 to 150 m|
|Outer Diameter:||298~575 mm||Retracted Length:||6.00 to 26 m|
|Material:||27 Simn, 35 Crmo||Size/diameter:||as per customer demand|
|Machine Type:||rotary drilling rig|

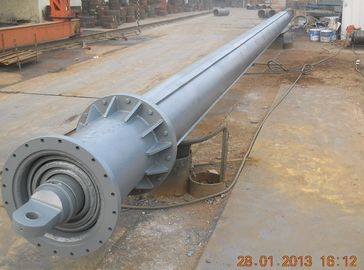

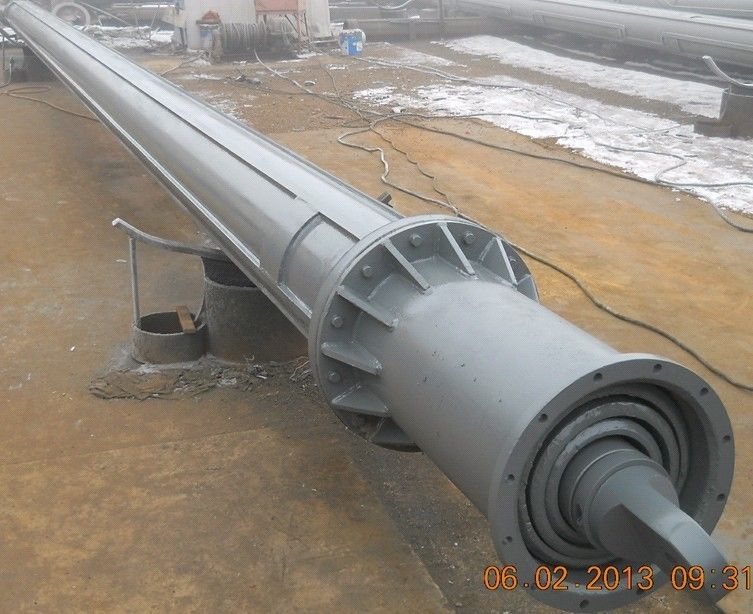

Friction Kelly Bar
|Number||Outer Diameter(mm)||Elements||Max Drilling Depth(m)||Retracted Length(m)|
|1||298||4 or 5||32 to 50||7.50 to 11.00|
|2||324||4||25 to 32||8.00 to 9.00|
|3||340||4||32 to 56||9.00 to 16.00|
|4||355||4 or 5||19 to 55||6.00 to 12.00|
|5||368||3 or 4||18 to 52||7.00 to 15.00|
|6||377||4 or 5||31 to 60||8.50 to 13.00|
|7||394||3 or 4||21 to 64||9.50 to 18.50|
|8||406||4 or 5||32 to 77||9.00 to 16.50|
|9||419||4 or 5||25 to 68||7.50 to 14.50|
|10||440||3 or 5||18 to 72||7.50 to 15.50|
|11||470||4 or 6||32 to 90||9.00 to 19.00|
|12||483||4 or 5||37 to 77||10.50 to 16.50|
|13||508||4 or 5||32 to 75||9.50 to 16.00|
|14||535||4, 5, 6||32 to 115||9.00 to 20.00|
|15||575||4, 5, 6||32 to 150||9.00 to 26.00|
TYSIM is the sole agent to supply first-class kelly bars which can be matched with drilling rigs of Bauer, CMV, Soilmec, Casagrande, MAIT, IMT, etc.
· We supply kelly bars for a torque range of 10-350 kN.m and in lengths up to 110 m.
· High-grade materials and special welding guarantee a high durability and wear resistance of our kelly bars.
· We individually adapt our kelly bars to your drilling and rotary power head.
· All kelly bars are available as friction and interlocking version.
· Our kelly bars transfer the maximum torque over the full extended length.
· Individually implementations, especially client specific ones could be made as well as intermediate dimensions.
Why Choose Us?
1. We have good supplier of kelly bar with more than 13 years experience.
2. Using good steels from large factory, making sure kelly bars quality.
3. Supply kelly bars for Soilmec, Bauer, SANY, XCMG and other brands of rotary drilling rig.
4. Competitive price.
1. What kind of kelly bar can we provide?
Ans.: We can provide kelly bars for almost all the brand rotary drilling rig,the interlocking Kelly bar and friction Kelly bar , most are for Bauer, IMT , MAIT, SOILMEC, SANY , TEG, SUNWARD ,XCMG ,Etc. For ten years experience, supply all the world clients with good satisfaction.
2. What is the advantages of our kelly bar?
Ans.:We use super quality seamless steel pipe material, which makes the kelly bar more durable, and our kelly bar with competitive and reasonable price. We have got the ISO9001 certification , no matter you are dealers or end user, you will get the biggest profit.
3. What warranty do we provide?
Ans.: We provide 6 months warranty time.
4. What is the lead time?
Ans.: Usually the lead time is 7days,after receipt of your down payment.
5. What payment terms do we accept?
Ans.: We accept TT in advance and LC at sight .
TYSIM machinery focuses on the research,development and manufacture of the kind of the pile working enginerring machiney,it’s the unique company that focuses on developing small and medium-sized rotary drilling rig applying for civil enginerring,now have obtained more than 40 patents of pile working enginerring machiney.The original KP size Pile Breaker(also named break pile machine) of company in China,realize the efficiently pile cutting on a large scale,change the history that field of pile cutting inland rely on the workers and no professional equipments.This production obtained 11 core patents,among them 1 invention patent,they have been exported to Amercian,Brazil,Australia,Vietman,Indonesia and many other countries.
KR size small and medium-sized rotary drilling rig in many fields of metro,viaduct,houses win the praise of all the customers for the construction result,it will be the low cost and high efficient pile working equipments in operation field of our country’s new urbanizational construction. With the goal “be the reliable pile working proficient,fabricate the trade leading outstanding productions”,we recruit excellent talents constantly,create cause terrace for the win-win situation between staffs and company.We stick to the core concept“concentration,creative,value”concentrate on research and development in the pile basical construction field,rely on the working style of“pay attentions to details,keep improving,against the tardiness, finish daily duty”make great efforts to realize the vision of “become the pacemaker of small and medium-sized pile working machinery”.
