|Working medium:||32# or 46# anti-wear hydraulic oil||Fuel tank volume:||320L|
|Max. operating pressure:||315 bar||Motor power:||22 KW|
|Motor frequency:||50 Hz||Motor voltage:||380 V|
|Motor working speed:||1460 rpm||Working weight (full tank):||880kg|
|Wireless control distance:||200 m|
Electric Hydraulic Power Pack for KP450S Hydraulic Pile breaker Fuel tank Volume 320L Pump Station
1. Match pile breaker, provide hydraulic drive.
2. Wireless control.
3. Environment protection.
4. Air cooling, long time service.
5. Trustworthy quality parts.

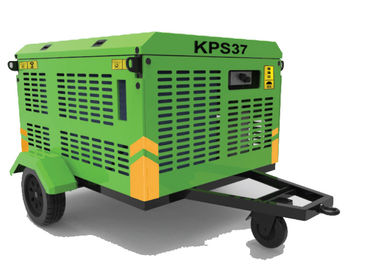

|Technical specification of KPS37 and KPS22|
|Working medium||32# or 46# anti-wear hydraulic oil|
|Fuel tank volume||470 L||320 L|
|Max. flow rate||240 L/min||120 L/min|
|Max. operating pressure||315 bar||315 bar|
|Motor power||37 KW||22 KW|
|Motor frequency||50 Hz||50 Hz|
|Motor voltage||380 V||380 V|
|Motor working speed||1460 rpm||1460 rpm|
|Working weight (full tank)||1500 kg||850 kg|
|Wireless control distance||200 m||200 m|
Why Choose Us?
1. We are the first manufacturer to design & manufacture pile breaker in China with over 4 years.
2. Supply professional customized service to meet all your requirements.
3. Competitive price.
Q1: What is the main usage of hydraulic pump station?
1. To match hydraulic pile breaker, for cutting square or round concrete.
2. To provide hydraulic drive, in construction site, in scientific research institution, and so on.
Q2: What about the after-sale service?
1. 6 months of warranty time.
2. We provide some spare parts for free.
3. Long time technical instruction.
Installation steps of hydraulic pile breaker and the pump station:
1. Put the pump station and pile breaker hang to the designated spot.
2. Use cable to put the external power connected with the pump station, make sure the indicator light without error.
3. Use hose to put the pile breaker connected with the pump station and install securely.
4. Through the observation mouth to check whether there is enough hydraulic oil in the fuel tank of the pump station.
5. Opening motor and operating the cylinder telescopic movements, making the hose and fuel tank full with oil.
6. Craning the pile breaker to cut piles.
Matches between pump station and hydraulic pile breaker:
|Pump station model||Round pile breaker model||Square pile breaker model|
Safety maintenance of the hydraulic pile breaker and the pump station:
1. Check the wear condition of drill rod regularly in order to change in time.
2. Check whether existing oil leaking of the cylinder and hydraulic parts.
